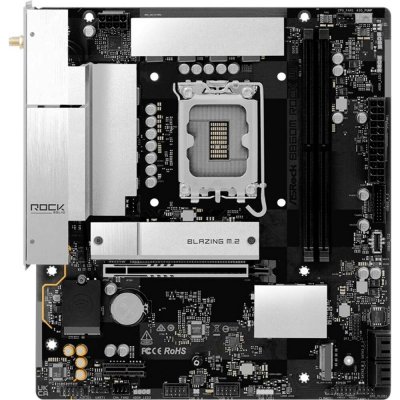

ASRock B860M Rock WIFI

B860M ROCK WIFIRock Series brings reliable performance and solid quality in a clean, modern design—ready for work, study, and gaming with practical, well-balanced features.Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)5+1+1+1+1 Power Phase2 x DDR5 DIMMsSupports Dual Channel, up to 8333+ (OC)1 PCIe 5.0 x16, 1 PCIe 4.0 x1Graphics Output Options: 1 HDMI, 1 DisplayPortRealtek ALC897 7.1 CH HD Audio Codec1 Blazing M.2 (PCIe Gen5x4)1 Hyper M.2 (PCIe Gen4x4)4 SATA31 USB 3.2 Gen2x2 Type-C (Rear)1 USB 3.2 Gen1 Type-C (Front)5 USB 3.2 Gen1 (3 Rear, 2 Front)6 USB 2.0 (2 Rear, 4 Front)Realtek 2.5G LAN802.11axe Wi-Fi 6E + BluetoothUnique FeatureSuperb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5Rock-Solid Durability- 5+1+1+1+1 Power Phase- Pre-Installed I/O Shield-- ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) TechnologyUltrafast Connectivity- 2.5G LAN, 802.11axe Wi-Fi 6E ModuleEZ Update- ASRock Auto Driver InstallerCPU- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)- Supports Intel® Hybrid Technology- Supports Intel® Turbo Boost Max 3.0 Technology- Supports Intel® Thermal Velocity Boost (TVB)- Supports Intel® Adaptive Boost Technology (ABT)- Integrated NPU for dedicated AI accelerationChipset- Intel® B860Memory- Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Expansion Slots- Supports DDR5 non-ECC, un-buffered memory up to 8333+(OC)*- Supports Clocked Unbuffered DIMM (CUDIMM)- Max. capacity of system memory: 128GB- Supports Intel® Extreme Memory Profile (XMP) 3.0x*1DPC 1R Up to 8333+ MHz (OC), 6400 MHz Natively.1DPC 2R Up to 6400+ MHz (OC), 6400 MHz Natively.BIOS- 256Mb AMI UEFI Legal BIOS with GUI supportGraphics- Intel® Xe LPG Graphics Architecture- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.Audio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)LAN- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority ControlWireless Communication module- 802.11axe Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe- Supports Dual-Band 2x2 with extended 6GHz band support*- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.3- Supports MU-MIMO*The 6GHz band of Wi-Fi 6E module is supported by Microsoft® Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.A 6GHz compatible router is required for 6E functionality.Expansion SlotsCPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x PCIe 4.0 x1 Slot (PCIE2), supports x1 mode*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*Supports NVMe SSD as boot disksStorageCPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Internal I/O Connectorss*Supports Intel® Volume Management Device (VMD)Supports NVMe SSD as boot disksRAID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSBCPU:- 1 x USB 3.2 Gen2x2 Type-C (Rear)Chipset:- 1 x USB 3.2 Gen1 Type-C (Front)- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)- 6 x USB 2.0 (2 Rear, 4 Front)*All USB ports support ESD ProtectionInternal I/O Connectors- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 1 x CPU Fan Internal I/O Connectors (4-pin) (Smart Fan Speed Control)***- 2 x Chassis Fan Internal I/O Connectorss (4-pin) (Smart Fan Speed Control)***- 1 x AIO Pump Fan Internal I/O Connectors (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Internal I/O Connectors- 1 x 8 pin 12V Power Internal I/O Connectors- 1 x Front Panel Audio Internal I/O Connectors- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen1 Header*Supports in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***CPU_FAN1, CHA_FAN1~2 and AIO_PUMP support the fan power up to 3A (36W).CPU_FAN1, CHA_FAN1~2 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.Back Panel I/O Ports- 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)- 3 x USB 3.2 Gen1 Ports- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- HD Audio Jacks: Line in / Front Speaker / MicrophoneSoftware and UEFISoftware- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.Accessories- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz AntennasForm Factor- Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cmOS- Microsoft® Windows® 11 64-bitCertifications- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required).
