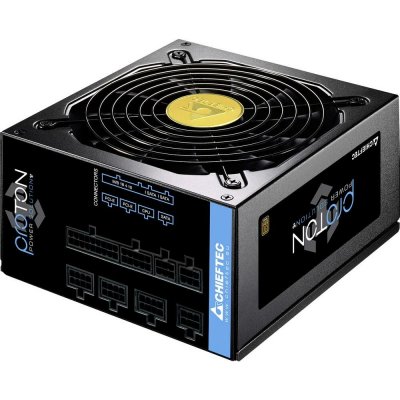

Chieftec Proton Series 650W BDF-650C

Performance

AC Input:

115-230V

Frequency:

50 - 60Hz

+5V:

22A

+3,3V:

22A

+5V & +3,3V combined:

120W

+12V 1:

54,2A

+12V 2:

N/A

+12V 1 & +12V 2 combined:

N/A

+12V 3:

N/A

+12V 4:

N/A

+12V 3 & +12V 4 combined:

N/A

P.F.:

>0,9

-12V:

0,3A

+5VSB:

2,5A

Maximum Load:

650W

Modular cable

24PIN ATX:

1(20+4)

SATA:

6

MOLEX:

3

Floppy:

1

4PIN 12V:

-

8PIN 12V:

-

8PIN (4+4) 12V:

1

6PIN PCIe:

-

8PIN (6+2) PCIe:

4

Features

Specification:

ATX 12V 2.3

Form factor:

PS II

Efficiency:

> 85%

Dimension (DxWxH):

140 mm x 150 mm x 87 mm

PFC:

Active PFC (0,9)

Fan:

140mm silent fan

Security:

UVP (Undervoltage protection)

OVP (Overvoltage protection)

SCP (Short-circuit protection)

OPP (Overload protection)

OCP (Overcurrent protection)

OTP (Over Temperature protection)

AFC (Automatic Fanspeed Control)

Warranty:

24 Month
