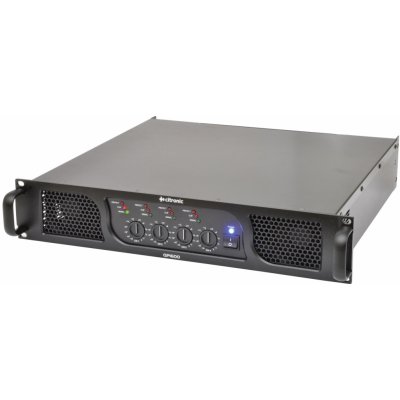

A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount. Power supply: 230Vac, 50Hz (IEC) Input : line: 4 x XLRF balanced Output : line: 4 x XLRM (parallel from inputs) Input impedance: 20k Ohms Power RMS: 4x 400W / 2 Ohm Power RMS: 4x... Celý popis
Koupit za 12 930 Kč- Od nejoblíbenějších
- Od nejlevnějších
- Od nejdražších
Popis
A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.
Power supply: 230Vac, 50Hz (IEC)
Input : line: 4 x XLRF balanced
Output : line: 4 x XLRM (parallel from inputs)
Input impedance: 20k Ohms
Power RMS: 4x 400W / 2 Ohm
Power RMS: 4x 300W / 4 Ohm
Power RMS: 4x 200W / 8 Ohm
Frequency response: 5Hz - 50kHz
THD: 0.05%
Slew rate: 40V/usec
S/N ratio: 103dB
Controls: 4 x channel gain
Speaker outputs: 4 x SPK connectors
Circuit protection: Short-circuit, DC, overload, soft-start
Dimensions: 483 x 439 x 88mm
Fuse rating: F8A
Power supply: 230Vac, 50Hz (IEC)
Input : line: 4 x XLRF balanced
Output : line: 4 x XLRM (parallel from inputs)
Input impedance: 20k Ohms
Power RMS: 4x 400W / 2 Ohm
Power RMS: 4x 300W / 4 Ohm
Power RMS: 4x 200W / 8 Ohm
Frequency response: 5Hz - 50kHz
THD: 0.05%
Slew rate: 40V/usec
S/N ratio: 103dB
Controls: 4 x channel gain
Speaker outputs: 4 x SPK connectors
Circuit protection: Short-circuit, DC, overload, soft-start
Dimensions: 483 x 439 x 88mm
Fuse rating: F8A
Parametry
| Výrobce | Citronic |
| Počet kanálů | 4 |
| Impedance | 2 |
| Výkon | 400 W |
| Hmotnost | 22 kg |
| Stereo zesilovač | ano |
