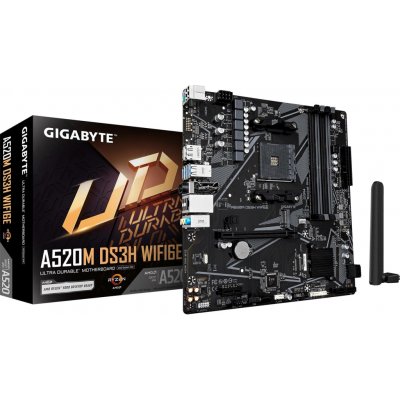

Gigabyte A520M DS3H WIFI6E

Gigabyte A520M DS3H WIFI6E
Chipset: AMD A520
Rozměrový formát: Micro ATX Form Factor; 24.4cm x 24.4cm
Podpora pro procesory:

*AMD Ryzen™ 5000 G-Series Processors
*AMD Ryzen™ 5000 Series Processors
*AMD Ryzen™ 4000 G-Series Processors
*AMD Ryzen™ 3000 G-Series Processors
*AMD Ryzen™ 3000 Series Processors

Patice procesoru: AM4

Paměť:

*4x DDR4 DIMM sloty podporující až 128GB (32GB každý slot) paměti
*Podpora pro DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz moduly
*Dual channel memory architecture
*Podpora pro ECC Un-buffered DIMM 1Rx8/2Rx8 moduly
*Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly
*Podpora pro XMP

Grafické porty:
Integrated Graphics Processor with AMD Radeon™ Graphics support:

*1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
*1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Zvuková karta:

*Realtek® Audio CODEC
*High Definition Audio
*2/4/5.1/7.1-channel

Ethernet: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
WLAN + Bluetooth: MediaTek Wi-Fi 6E MT7902

*WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
*BLUETOOTH 5.3
* Support for 11ax 160MHz wireless standard

Rozšiřující sloty:

1 x PCI Express x16 slot, integrated in the CPU:

*Supporting PCIe 3.0 x16 mode

1 x PCI Express x1 slot, integrated in the Chipset:

*Supporting PCIe 3.0 x1 mode

RAID řadič: RAID 0, RAID 1, RAID 10

Úložný prostor:

1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

*Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

*Supporting for RAID 0, RAID 1, and RAID 10

USB:

CPU:

*4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

*2 x USB 3.2 Gen 1 ports available through the internal USB header
*6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Interní porty:
Napájení

*1× 24-pin ATX main power connector
*1× 8-pin ATX 12V power connector
*1× CPU fan header
*1× system fan header

Související s úložištěm

*1× M.2 Socket 3 connector
*4× SATA 6Gb/s connectors

USB

*1× USB 3.2 Gen 1 header
*1× USB 2.0/1.1 header

Ostatní

*1× front panel header
*1× front panel audio header
*1× Trusted Platform Module (TPM) header
*1× Clear CMOS jumper

Porty na zadním panelu:

*1 x PS/2 keyboard/mouse port
*1 x DisplayPort (Note )
*1 x HDMI port (Note )
*4 x USB 3.2 Gen 1 ports
*4 x USB 2.0/1.1 ports
*1 x RJ-45 port
*2 x antenna connectors (1T1R)

BIOS:

*1 x 128 Mbit flash
*Use of licensed AMI UEFI BIOS
*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitorování:

*Voltage detection
*Temperature detection
*Fan speed detection
*Fan fail warning
*Fan speed control

OS: Podpora pro Windows 11 64-bit a Windows 10 64-bit
