Features Ultra Durable 100% Japanese capacitors 120mm smart hydraulic bearing (HYB) fan Optimized thermal solution OVP/OPP/SCP/UVP/OCP/OTP protection Intel ATX 3.1 and PCIe Gen 5.1 ready 80 PLUS Gold certified Fully modular design Powerful single +12V rail Compact size Model GP-UD750GM PG5 V2 Type Intel Form Factor ATX 12V v3.1 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-6.5A Input Frequency 60-50 Hz Output Capacity 750W Dimensions 150 x 140 x 86mm Fan... Celý popis
Koupit za 1 699 Kč- Od nejoblíbenějších
- Od nejlevnějších
- Od nejdražších
96 %

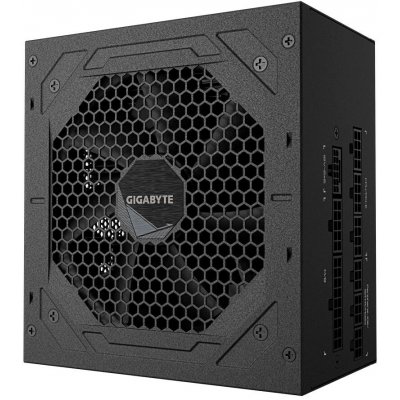

GIGABYTE UD750GM PG5 V2 GP-UD750GM PG5 V2
Doprava:
49 Kč
Skladem
1 699 Kč
Koupit za 1 699 Kč
100 %
GIGABYTE zdroj UD750GM PG5 V2, 750W, 120mm, Plně modulární, 80 Plus Gold, ATX 3.1 EDF_1706265
Doprava:
zdarma
Skladem
1 974 Kč
Koupit za 1 974 Kč
96 %
GIGABYTE zdroj UD750GM PG5 V2, 750W, 120mm, Plně modulární, 80 Plus Gold, ATX 3.1 GP-UD750GM PG5 V2
Doprava:
69 Kč
Skladem
2 019 Kč
Koupit za 2 019 Kč
94 %
Gigabyte UD750GM PG5 V2 750 W napájecí zdroj ATX 3.1, 80 Plus Gold, plně modulární
Doprava:
zdarma
2 507 Kč
Koupit za 2 507 Kč
85 %
GIGABYTE zdroj UD750GM PG5 V2, 750W, 120mm, Plně modulární, 80 Plus Gold, ATX 3.1
Doprava:
89 Kč
Skladem
2 066 Kč
Koupit za 2 066 Kč
Popis
Features
Ultra Durable
100% Japanese capacitors
120mm smart hydraulic bearing (HYB) fan
Optimized thermal solution
OVP/OPP/SCP/UVP/OCP/OTP protection
Intel ATX 3.1 and PCIe Gen 5.1 ready
80 PLUS Gold certified
Fully modular design
Powerful single +12V rail
Compact size
Model
GP-UD750GM PG5 V2
Type
Intel Form Factor ATX 12V v3.1
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Output Capacity
750W
Dimensions
150 x 140 x 86mm
Fan Type
120mm Hydraulic Bearing(HYB) Fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protections
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Embossed, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
PCI-e 12+4 Pin x 1:700mm*1
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1
Ultra Durable
100% Japanese capacitors
120mm smart hydraulic bearing (HYB) fan
Optimized thermal solution
OVP/OPP/SCP/UVP/OCP/OTP protection
Intel ATX 3.1 and PCIe Gen 5.1 ready
80 PLUS Gold certified
Fully modular design
Powerful single +12V rail
Compact size
Model
GP-UD750GM PG5 V2
Type
Intel Form Factor ATX 12V v3.1
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Output Capacity
750W
Dimensions
150 x 140 x 86mm
Fan Type
120mm Hydraulic Bearing(HYB) Fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protections
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Embossed, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
PCI-e 12+4 Pin x 1:700mm*1
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1
Parametry
| Formát zdroje | ATX |
| Výkon zdroje | 750 W |
| Výrobce | Gigabyte |
| Certifikace | 80 PLUS Gold |
| Velikost ventilátoru | 120 mm |
| PFC filtr | aktivní |
