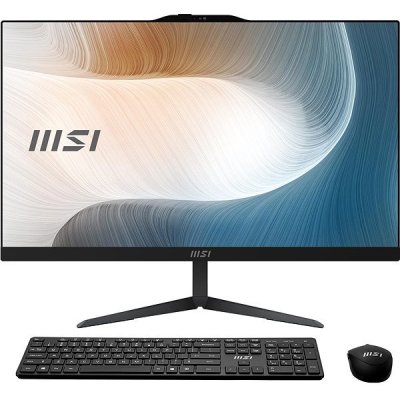

MSI Modern AM242 11M-864EU

MSI AIO Modern AM242 11M-864EU 23.8" IPS NT/1920x1080/ Pentium 7505/4GB/128GB SSD/HD Graphics/Win 11 Pro

MKT Spec Modern AM242 11M-864EU
Website Name Modern AM242 11M
Color ID1/Black-Black-Black
System/Barebone System
Display
Screen Size 23.8" (60cm)
Active Display Area (mm) 527.04mm(H) x 296.46mm(V)
Curvature Flat
Panel Type IPS
Resolution 1920x1080 (FHD)
Pixel pitch 0.2745(H)x0.2745(V)
Brightness (nits) 250
Contrast Ratio 1000:01:00
Response Time (GTG) 14 ms
View Angles 178°(H)/178°(V)
Surface Treatment Anti-Glare
Touch Screen Non-touch
Display Colors 16.7M
Processor
CPU Core Name TIGER LAKE
CPU Socket FCBGA-1449pin
CPU Number Intel Pentium 7505
CPU Clock 2.0GHz
CPU Cores 2
TDP 15W
Max Turbo Frequency up to 3.50 GHz
Cache 4 MB Intel® Smart Cache
Threads 4
Chipset
Graphics
GPU1 Number UMA
Memory
Memory Size 4GB(4GB*1)
Memory Type DDR4 SDRAM
Memory Speed 1600(3200)MHz
Module Type SO-DIMM
Memory Slot 1
Memory Slot(Total) 2
Memory Slot(Free)
Max Capacity Max 64GB
Storage
SSD Interface SATA GEN3
SSD Form Factor M.2-2280 B+M KEY
SSD Config 128GB*1
SSD Size 128GB
M.2 slots 1
M.2 slots(Total) 1
2.5" Drive Bays(Total) 1
Communications
LAN Realtek RTL8111H
WLAN INTEL/9462.NGWG.NV
WLAN Version 802.11ac 1x1+BT
BT Version 5
I/O Ports (Side)
USB 3.2 Gen 2 Type C 2
USB 3.2 Gen 2 Type A 2
Mic-in/Headphone-out combo 1
I/O Ports (Rear)
USB 2.0 Type A (R) 2
RJ45 1
HDMI out 1x (v2.0)
HDMI in 1
Lock type Kensington
Input Device
Webcam internal webcam
Audio
Audio Chipset Realtek ALC233
Audio Type 2.1 Channel HD Audio
Speaker 2 x 2.5W
Power
AC Adapter Output 120W
Operating Systems
OS PROFESSIONAL(WIN 11 PRO ENTRY OLC OA3)
OS Type W11PB

Dimension&Weight

Product Dimension with Stand (WxDxH) (mm) 541.4 x 175.09 x 406.86
Product Dimension with Stand (WxDxH) (inch) 21.31 x 6.89 x 16.02
Outer Carton Dimension with Stand (WxDxH) (mm) 652 x 222 x 495
Outer Carton Dimension with Stand (WxDxH) (inch) 25.67 x 8.74 x 19.49
Weight (Net kg) 4,65
Weight (Net lbs) 10,25
Weight (Gross kg) 7,35
Weight (Gross lbs) 16,2
STAND
Adjustment (Tilt) -5~15
HDMI Royalty Y
Mechanical and Environmental
Operating, Storage Temperature 0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity 0% ~ 85%;0% ~ 90%
Regulatory Compliance FCC(Class B)
CB/CE
UL(CUL)
BSMI
VCCI
RCM(C-Tick)
Accessories
AC Adaptor 1
Power Cord 1
Warranty Card 1
Quick Guide 3
