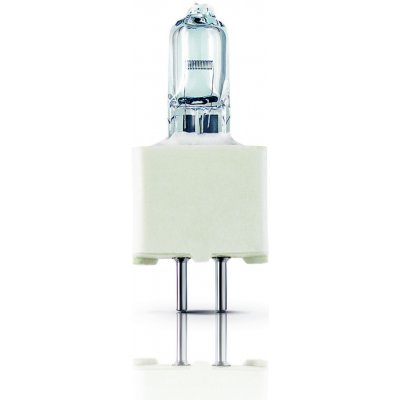

Philips 14531 360W G5.3 82V

General Characteristics

-
Philips Code
14531

-
ANSI Code
EYB

-
Cap-Base
G5.3

-
Bulb Material
Quartz-UV Open

-
Filament Shape
Flat

-
Operating Position
s90

-
Main Application
Projection

-
Life to 50% failures
75 hr

Electrical Characteristics

-
Lamp Wattage
360 W

-
Voltage
82 V

Light Technical Characteristics

-
Color Rendering Index
100 Ra8

-
Color Temperature Technical
3300 K

-
Luminous Flux Lamp
10000 Lm

Product Dimensions

-
Overall Length C
57 (max) mm

-
Diameter D
11.5 (max) mm

-
Light Center Length L
31.6 (min), 31.8 (nom), 32 (max) mm

-
Pin Diameter P
1.45 (min), 1.50 (nom), 1.55 (max) mm

-
Filament Dimensions (WxH) [mm]
4.0x8.0
