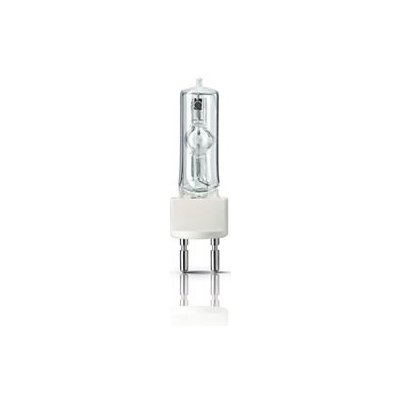

Philips MSR 1200 5900K G22

System Description
Cold Strike

Cap-Base
G22

Cap-Base Information
30x53mm

Operating Position
any

Main Application
Studio/Disco

Life to 50% failures EM
800 hr

Light Technical Characteristics

Color Rendering Index
80 Ra8

Color Temperature
5900 K

Color Temperature Technical
5900 K

Chromaticity Coordinate X
325 -

Chromaticity Coordinate Y
320 -

Luminous Flux Lamp EM
94000 (min), 110000 (nom) Lm

Luminous Efficacy Lamp EM
91 Lm/W

Electrical Characteristics

Lamp Wattage
1200 W

Lamp Wattage Technical
1200 W

Lamp Current
13.8 A

Ignition Supply Voltage
207 (min) V

Dimmable
No

Luminaire Design Requirements

Pinch Temperature
350 (max) C

Bulb Temperature
700 (max) C

Product Dimensions

Overall Length C
175 (max) mm

Diameter D
40 (max) mm

Width F
53 mm

Light Center Length L
84 (min), 85 (nom), 86 (max) mm

Arc Length O
10.0 mm
