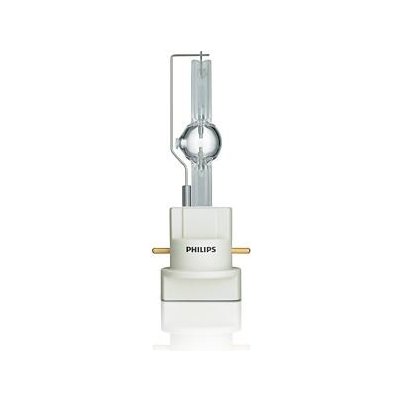

Philips MSR GOLD 700/2 7200K PGJX28 MiniFastFit

System Description
MiniFastFit

Cap-Base
PGJX28

Cap-Base Information
PGJX28

Operating Position
any

Main Application
Entertainment

Life to 50% failures EM
750 hr

Light Technical Characteristics

Color Code
2

Color Rendering Index
75 Ra8

Color Temperature
7200 K

Color Temperature Technical
7200 K

Chromaticity Coordinate X
300 -

Chromaticity Coordinate Y
324 -

Luminous Flux Lamp EM
44000 (min), 47000 (nom) Lm

Luminous Efficacy Lamp EM
69 Lm/W

Electrical Characteristics

Lamp Wattage
700 W

Lamp Wattage Technical
700 W

Lamp Current
10.2 A

Ignition Supply Voltage
198 (min) V

Dimmable
Yes

Luminaire Design Requirements

Pinch Temperature
500 (max) C

Bulb Temperature
950 (max) C

Product Dimensions

Overall Length C
112 (max) mm

Diameter D
23.2 (max) mm

Width F
35.3 (min), 36 (nom), 36.5 (max) mm

Light Center Length L
55 (min), 56 (nom), 57 (max) mm

Arc Length O
3.8 mm
