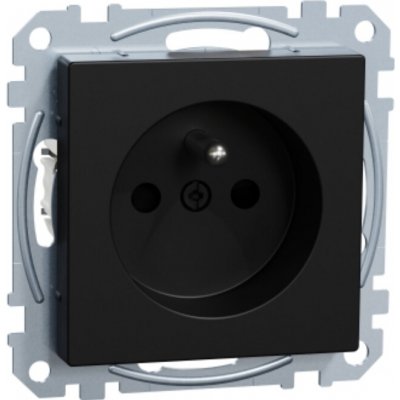

Schneider Electric MEG2600-0403

Product name
System M Inserts
Product or component type
Socket-outlet
Device presentation
Mechanism with fixing frame and cover plate
Complementary
Device mounting
Flush
fixing mode
By screws and claws
Device application
Power supply
Socket number
1
Outlet poles configuration
2P + E
Outlet standard
CEE 7/5
Rated current
16 A
[Ue] rated operational voltage
250 V
Network type
AC
Network frequency
50/60 Hz
Colour tint
Black (RAL 9005)
Material
Thermoplastic
surface treatment
Painted
Surface finish
Matt
Connections - terminals
Screw terminal
IP degree of protection
IP20
IK degree of protection
IK03
Width
73 mm
Height
73 mm
Depth
37 mm
Standards
DIN 49440
Environmental health and issues
Lead free
Aesthetic dimension
55 x 55 mm
Outlet standard deviation
French
