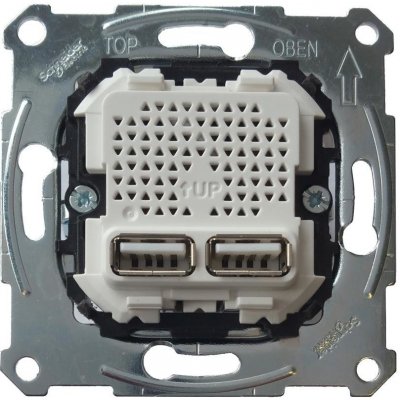

Schneider Electric MTN4366-0100

range of product        Merten System M   product or component type        USB charger   socket number        2   device presentation        Device with fixing frame and claws   output current        2.1 A   provided equipment        USB charger   type of packing        Flow-pack   device mounting        Flush   [Ue] rated operational voltage        100...240 V (+/- 10 %) AC 50/60 Hz   [In] rated current        180 mA   energy efficiency ratio        72   power consumption in W        < 0.1 W   nominal output power        10.5 W   input power        12 W   output voltage        5 V DC 2.1 A   connector type        USB 2.0   service life in hours        30000 h 10.5 W   number of terminals        2 screw terminals   shape of screw head        Pozidriv No 1   clamping connection capacity        2 x 0.75...2 x 2.5 mm² rigid
2 x 0.75...2 x 2.5 mm² flexible
2 x 0.75...2 x 2.5 mm² stranded   wire stripping length        7 mm   material        PC (polycarbonate) GF10 FR casing
PC (polycarbonate) GF10 FR internal cover   protection type        Electronic overload and temperature protection   fixing mode        By screws   product compatibility        Mobile/tablet Android
Mobile/tablet Mac iOS
Mobile/tablet Windows   height        45 mm   width        22.5 mm   depth        42 mm   embedding depth        30.8 mm   market segment        Small commercial
Residential   standards        EN 60950-1
ETSI EN 301 489-4
EN 62684   directives        2004/108/EC - electromagnetic compatibility
2002/96/EC - WEEE directive
2002/95/EC - RoHS directive
2006/95/EC - low voltage directive   product certifications        EAC   environmental characteristic        REACH Regulation (EC) No 1907/2006   IK degree of protection        IK04   IP degree of protection        IP20
