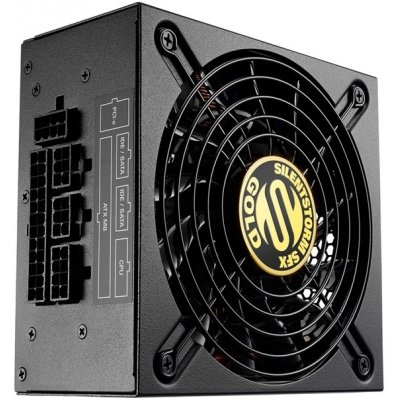

Sharkoon SilentStorm SFX Gold 500W

Sharkoon SilentStorm SFX 500 Gold - Napájení (TD3422188) (4044951016419) (4044951016419) Sharkoon SilentStorm SFX Gold, 500 W, 100 – 240 V, 50 – 60 Hz, 7 A,
+12V,+3.3V,+5V,+5Vs­b,–12V, 105 W
Úvodní popis
Sharkoon SilentStorm SFX Gold. Celkový příkon: 500 W, Vstupní střídavé
napětí: 100 – 240 V, Frekvence vstupního střídavého napětí: 50 –
60 Hz. Napájecí konektor základní desky: 20+4 pin ATX. Účel: PC, Formát
PSU: SFX, Certifikace 80PLUS: 80 PLUS Gold. Barva: Černá, Typ chlazení:
Aktivní, Průměr větráku: 12 cm. Šířka: 125 mm, Hloubka: 130 mm,
Výška: 63 mm
Popis
SFX Power Supply with “80 PLUS Gold” Certification
The SilentStorm SFX Gold 500W is an “80 PLUS Gold” certified SFX power
supply for high demands. It offers outstanding efficiency of over 90 percent by
50 percent load and meets the strict requirements of the independent 80 PLUS
Initiative “PLUG LOAD SOLUTIONS”. The compact dimensions total to only
130 × 125 × 63 mm. Power supplies can be installed into conventional ATX
cases using the enclosed ATX mounting frame.
Great Connectivity
Thanks to the modular cable system the only cables used are those needed in the
PC. For the setup of modern systems there is a 500 Watt power supply with two
6+2 pin PCIe power connectors for high-performance graphics cards. In addition
to the CPU and mainboard standard connectors the SFX power supply offers four
SATA, two IDE and a floppy power connector. It is compatible with Intel HASWELL
CPUs.
Effective and Quiet Cooling
The operating noise of the power supply is effectively reduced by means of a
quiet 120 mm fan and is especially suitable for lovers of Silent PCs that do
not want to miss out on a powerful PSU.
Guaranteed Protection
The SilentStorm SFX Gold 500W features an overcurrent, overtemperature,
overload, overvoltage, undervoltage and short circuit protection. The warranty
period is three years. The SilentStorm SFX Gold 500W is also certified to
current energy and environmental standards.
High Energy Efficiency
This power supply is “80 PLUS Gold” certified and meets all requirements
with an efficiency of at least 90 % under 50 % load and 87 % under both 20 %
and 100 % load.
