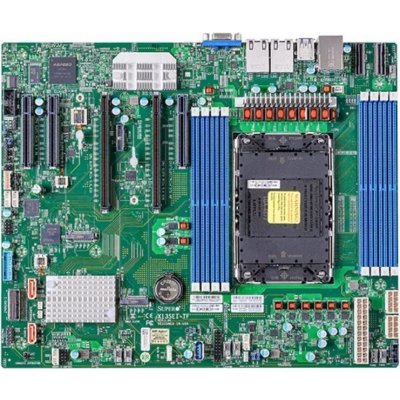

Supermicro MBD-X13SEI-TF-B

Key Features

- 4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP

- Intel C741® Chipset

- Up to 2TB 3DS ECC RDIMM, DDR5-4800MT/s (1DPC) in 8 DIMM slots

- 2 MCIO (PCIe5.0 x8) connectors for 4 NVMe SSDs

- 3 PCIe 5.0 x8,

2 PCIe 5.0 x16,

M.2 Interface: 2 PCIe 5.0 x4

M.2 Form Factor: 2280, 22110

M.2 Key: M-Key

- Dual LAN with 10GbE with Intel® X550

- 4 USB 3.2 Gen1 (2 rear, 1 Type-A, 1 via header), 2 USB 2.0 (2 rear)

- Intel® C741 controller for 10 SATA3 (6 Gbps) ports

Product SKUs

MBD-X13SEI-TF

Physical Stats

Form Factor

- ATX

Dimension

- 12.3" x 10.3" (31.24cm x 26.16cm)

Processor

CPU

- 4th Gen Intel® Xeon® Scalable processors

- Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP

Core

- Up to 60 cores

System Memory

Memory Capacity

- 8 DIMM slots

- Up to 2TB 3DS ECC RDIMM, DDR5-4800MHz

Memory Type

- 4800/4400/4000MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC)

DIMM Sizes

- 16GB, 32GB, 64GB, 128GB, 256GB

- RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

- 1.1V

Error Detection

- Corrects single-bit errors

On-Board Devices

Chipset

- Intel® C741

SATA

- Intel® C741 controller for 10 SATA3 (6 Gbps) ports

IPMI

- ASPEED AST2600 BMC

Graphics

- 1 Aspeed AST2600 BMC port(s)

Network Controllers

- Dual LAN with 10GBase-T with Intel® X550

Input / Output

SATA

- 10 SATA3 (6Gbps) port(s)

LAN

- 2 RJ45 10 Gigabit Ethernet LAN ports

- 1 RJ45 Dedicated IPMI LAN port

USB

- 2 USB 2 port(s) (2 rear)

- 4 USB 3.2 Gen1 port(s) (2 rear; 1 type A; 1 via header)

Video Output

- 1 VGA D-Sub Connector port(s)

Serial Port

- 1 COM Port(s) (1 header)

DOM

- 2 SATA DOM (Disk on Module) power connector support

TPM

- 1 TPM Header

Expansion Slots

PCIe

- 2 PCIe 5.0 x16,

- 3 PCIe 5.0 x8,

- 2 PCIe 5.0 x8 PCIe5.0 MCIO connector

M.2

- M.2 Interface: 2 PCIe 5.0 x4

- Form Factor: 2280/22110

- Key: M-Key

System BIOS

BIOS Type

- AMI UEFI

BIOS Features

- ACPI 6.4

- SMBIOS 3.5 or later

- UEFI 2.8

Management

Software

- SuperDoctor® 5, SPM, SUM, SSM, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, Trusted Platform Module (TPM), Chasis Intrusion Detection

PC Health Monitoring

Voltage

- VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages

LED

- UID/Remote UID

- CPU / System Overheat LED

Temperature

- Monitoring for CPU and chassis environment

- CPU thermal trip support

- Thermal Monitor 2 (TM2) support

- PECI

FAN

- 7x 4-pin fan headers (up to 7 fans)

- Fan speed control

- Overheat LED indication

- 7 fans with tachometer status monitoring

Other Features

- WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
