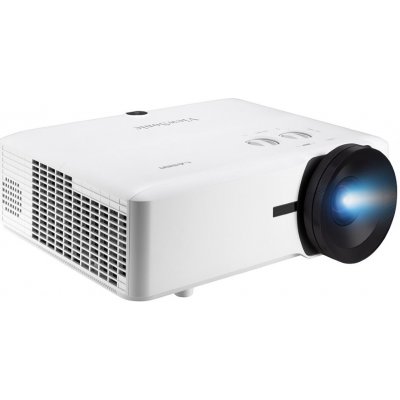

Viewsonic DLP LS860WU

LS860WU
5,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector
5,000 ANSI Lumens offering bright images in any environment
2nd generation Laser Phosphor technology with 20,000 hours lifespan
0.81-0.89 short throw ratio free of large space consumption
Wide H/V lens shift enabling flexible installation
Creativity realized by 360° projection & Portrait mode
Cost-effective compact size and built-in HDBaseT

OVERVIEW
ViewSonic LS860WU is an advanced 5,000 ANSI Lumens WUXGA short throw installation projector. Adopting the 2nd generation laser phosphor technology, it offers high and consistent brightness for a reliable light source life of 20,000 hours. Short throw ratio, 1.1x optical zoom, wide lens shift, 360° projection and portrait mode together build up amazing flexibility to create an overwhelmingly immersive experience, especially ideal for blending projection applications in simulation/experience centers, restaurants and gyms. Adding on to that are the compact size and built-in HDBaseT, ensuring the cost-effectiveness desired.

SPECIFICATIONS

Specification
Native Resolution: 1920x1200
DMD Type: DC3
Brightness: 5000 ANSI Lumens
Contrast Ratio: 3000000:1
Display Colour: 1.07 Billion Colours
Light Source Type: Laser Phosphor system
Light Source Life (Normal): up to 20000
Lamp Watt: Nichia 67W x2
Lens: F=1.83-1.86, f=9.6-9.4mm
Projection Offset: 0%
Throw Ratio: 0.81-0.89
Optical Zoom: 1.1X
Digital Zoom: 0.8x-2.0x
Image Size: 60"-200"
Throw Distance: 1.04-3.83m
(100"@1.74m)
Keystone: H:+/-40° , V:+/-40°
Lens Shift V. Range: Yes (+50%, -50%)
Lens Shift H. Range: Yes (+23%, -23%)
Audible Noise (Normal): 36dB
Audible Noise (Eco): 29dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to WUXGA(1920 x 1200)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz
Input
Computer in (share with component): 1
Composite: 1
S-Video: 1
HDMI: 2
(HDMI 1.4a/HDCP1.4 x2)
Audio-in (3.5mm): 1
Audio-in (RCA R/L): 1
3D VESA (Sync): 1
HDBaseT: 1
RJ45 Input: 1
(LAN control)
Output
Monitor out: 1
Audio out (3.5mm): 1
Speaker: 10W x2
USB Type A (Power): 1 (5V/ 1.5A)
(share with service)
12V Trigger (3.5mm): 1 (3.5mm)
Control
RS232 (DB 9-pin male): 1
RJ45: 1
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 430W
Standby:
