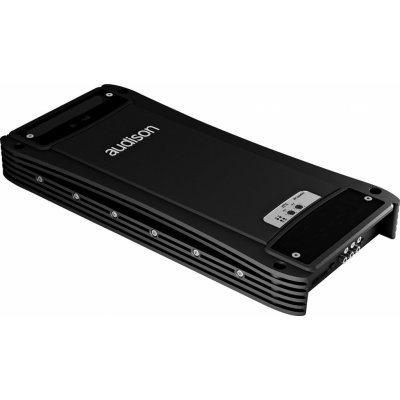

Audison AV QUATTRO

AV quattro is a four-channel amplifier which can work in four, three, two channel mode, delivering 800 W (RMS) power total.

POWER SUPPLY
Voltage: 11 ÷ 15 VDC
Idling current: 1.8 A
Idling current when off: 0.02 mA
Consumption @ 14.4 VDC (Max Musical Power): 55 A

AMPLIFIER STAGE
Distortion - THD (1kHz @ 4 W): 0.04 %
Bandwidth (-3 dB): 4 ÷ 60k Hz
S/N ratio (weighted A @ 1 V): 100 dBA
Damping factor (1 kHz@4Ω): 100
Input sensitivity: 0.3 ÷ 5.0 VRMS
Input impedance: 15kΩ
Speaker-In sensitivity: 1.4 ÷ 24 V RMS
Speaker-In impedance: 5kΩ
Minimum load impedance: 2Ω
Nominal Power (RMS) @ 12 VDC, THD 0.3%, 4Ω: 100W

OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
- 4 Ch: 120W x 4 (4Ω)
- 4 Ch: 200W x 4 (2Ω)
- 4 Ch: 120W x 2 (4Ω) + 200W x 2 (2Ω)
- 3 Ch: 120W x 2 (4Ω) + 400W x 1 (4Ω)
- 3 Ch: 200W x 2 (2Ω) + 400W x 1 (4Ω)
- 2 Ch: 400W x 1 (4Ω) + 400W x 1 (4Ω)

CEA SPECIFICATIONS
Output power @ 4 Ω, 1% THD+N, 14.4 Volts: 120 W x 4 Ch
SN ratio (ref. 1 W output): 80 dBA

SIGNALS INPUTS/OUTPUTS
Input: PRE IN / Speaker IN
Output: PRE OUT Full Range
A...
