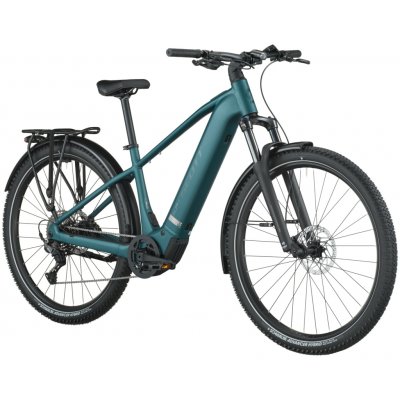

Scott Axis 10 2026

Specifikace

Rám
Alloy S-XL=29", 6061 Alloy custom butted tubing Side extraction battery UDH Interface, 12x148mm with 52mm Chainline

Zdvih
120mm

Vidlice
SR Suntour XCM34 LO Coil, Tapered, 15x110 TA, Lock Out, 120mm Travel

Pohonná jednotka
Bosch Performance Line CX (BDU384Y) EU: 25kmh

Baterie
PowerTube 600Wh

Displej
Bosch System Controller Intuvia 100 Mini remote

Nabíječka
2A Charger

Přehazovačka
Shimano Deore RD M6100SGS 12 Speed

Řazení
Shimano Deore SL-M6100RA

Kliky
FSA CK-220 165mm

Vodítko řetězu
Syncros

Převodník
FSA 36T

Řetěz
KMC E12S

Kazeta
Shimano CS-M6100-12 10-51T 12 Speed

Brzdy
Shimano BR-MT420 Disc Brakes

Rotor
Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 180mm

Řidítka
Syncros 3.0 720mm, 31.8mm, Backsweep 9°, 12mm rise Syncros Lock On Grip

Představec
Syncros with front Light mount and Intuvia 100 mount

Sedlovka
Syncros M3.0, 31.6

Sedlovka
Syncros Capilano

Hlavové složení
Acros, 1.5"- 1.5" semi integ. OD 50/61mm, ID 44/55mm

Přední náboj
Shimano HB-TC50015BB CL, 15x110mm

Zadní náboj
Shimano FH-TC500HMSBB CL, Boost 12x148mm

Výplet
Black Spokes

Ráfky
Syncros X18 Disc

Přední plášť
Schwalbe Advancer 60-622 Wired

Zadní plášť
Schwalbe Advancer 60-622 Wired

Světla
Front Lezyne Hecto E65 Rear Super Bright Lezyne Light

Nosič & blatníky
Racktime Micro Rack SnapIt 2.0 27KG

Pedály
VP VPE-506

Hmotnost v kg (cca)
28.3

Hmotnost v lb (cca)
62.39

Max. systémová hmotnost
160kg Celková hmotnost zahrnuje kolo, jezdce, vybavení\ a případné další zavazadlo

Klíčové vlastnosti

- Vidlice Suntour, zdvih 120 mm

- Shimano Deore 12 rychlostí

- Diskové brzdy Shimano

- Adaptér Syncros na připojení vozíku za kolo

- Přední a zadní světlo Lezyne / zadní integrované v nosiči Syncros

- Kompatibilní s adaptérem na nosič Racktime Snap It 2.0, nosnost 27 kg

- Syncros bike trailer adapter Lezyne front / Syncros rear-rack integrated rear Lights / Curana alloy fenders

- Racktime carrier Snap It 2.0 compatible, 27KG

Technologie

HEAVY-DUTY REAR RACK AND POWERFUL LIGHTS

Planning to carry a heavy load? No problem. The e-bike comes with a heavy-duty rear rack that supports up to 27 kg, perfect for a kids’ seat as well. Compatible with the Racktime Snap it 2.0 system adapter, the bike also features a powerful Lezyne front light and Syncros rear light: the rear light, integrated into the rear rack, is still visible with a kids’ seat mounted and thanks to its wraparound design, ensures visibility from a broader spectrum of angles.

SYNCROS ADAPTER FOR BIKE TRAILER

Need to bring your kids or pets along for the ride or just carry your grocery shopping bags? No problem! Our Syncros team has designed a thru-axle which enables you to tow any bike or cargo trailer so you can enjoy your time with your loved ones on your e-bike.

BOSCH EBIKE SYSTEM - 600 WH BATTERY

Reliability is key when it comes to e-Bike systems and Bosch is among the leaders. With the new Performance CX drive unit of 85 Nm, paired with the powerful, integrated PowerTube 600 WH battery, you can simply enjoy your ride. And if that’s still not enough, the e-bike is compatible with the Bosch PowerMore 250 range extender. The battery weight is also reduced to 3.9 kg thanks to its high energy density 205WH/kg.

SYNCROS COCKPIT

The new Syncros cockpit, equipped with an adjustable stem, gives the handlebar a sleek and attractive look.

AXIS GEOMETRY

With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a low step-through called “wave”, which is easier to mount and dismount. Pick the one that fits best suits you.

Geometrie rámu

XS

S

M

L

XL

A
head tube angle / angle tube de direction

66.0 °

66.0 °

67.0 °

67.0 °

67.0 °

B
head tube length / hauteur tube de direction

130.0 mm
5.1 in
130.0 mm
5.1 in
130.0 mm
5.1 in
140.0 mm
5.5 in
150.0 mm
5.9 in

C
top tube horizontal / longueur horizontale tube supérieur

580.0 mm
22.8 in
580.0 mm
22.8 in
600.0 mm
23.6 in
620.0 mm
24.4 in
640.0 mm
25.2 in

D
standover height / hauteur entre-jambes

773.1 mm
30.4 in
788.2 mm
31.0 in
789.3 mm
31.1 in
826.6 mm
32.5 in
861.4 mm
33.9 in

E
BB offset / deport axe de pédalier

63.0 mm
2.5 in
63.0 mm
2.5 in
63.0 mm
2.5 in
63.0 mm
2.5 in
63.0 mm
2.5 in

F
BB height / hauteur axe de pédalier

312.0 mm
12.3 in
312.0 mm
12.3 in
312.0 mm
12.3 in
312.0 mm
12.3 in
312.0 mm
12.3 in

G
wheel base / entraxe roues

1,213.1 mm
47.8 in
1,213.1 mm
47.8 in
1,221.1 mm
48.1 in
1,242.7 mm
48.9 in
1,264.3 mm
49.8 in

H
BB center to toptube center / dist. boitier - milieu tube supérieur

I
BB center to top of seattube / dist. boitier - sommet tube de selle

370.0 mm
14.6 in
400.0 mm
15.7 in
440.0 mm
17.3 in
490.0 mm
19.3 in
540.0 mm
21.3 in

J
seat angle / angle tube de selle

75.8 °

75.8 °

75.8 °

75.8 °

75.8 °

K
chainstay / longueur des bases

482.0 mm
19.0 in
482.0 mm
19.0 in
482.0 mm
19.0 in
482.0 mm
19.0 in
482.0 mm
19.0 in

L
reach / reach

412.2 mm
16.2 in
412.2 mm
16.2 in
430.8 mm
17.0 in
448.5 mm
17.7 in
466.2 mm
18.4 in

M
stack / stack

663.0 mm
26.1 in
663.0 mm
26.1 in
668.6 mm
26.3 in
677.8 mm
26.7 in
687.0 mm
27.0 in

N
stem length / longueur potence

70.0 mm
2.8 in
70.0 mm
2.8 in
70.0 mm
2.8 in
70.0 mm
2.8 in
70.0 mm
2.8 in

0
trail / chasse au sol

111.1 mm
4.4 in
111.1 mm
4.4 in
103.8 mm
4.1 in
103.8 mm
4.1 in
103.8 mm
4.1 in
