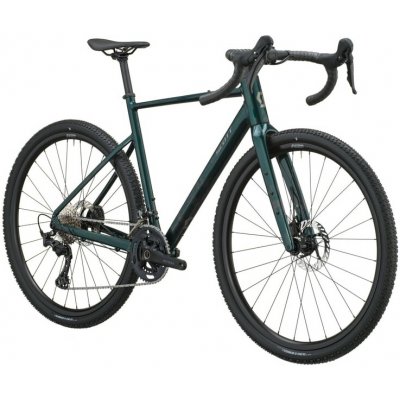

Scott Speedster Gravel 10 2027

Specifikace

Rám
Speedster Gravel, D.Butted 6061 alloy, SCOTT ride geometry, Replaceable UDH derailleur hanger, Internal cable routing, Syncros fender kit ready

Vidlice
Addict Gravel HMF Flatmount Disc, 1 1/4"-1 1/2" eccentric carbon steerer

Přehazovačka
Shimano GRX RD-RX820 GS, 12 Speed

Přesmykač
Shimano FD-RX820F GRX

Kliky
Shimano GRX FC-RX610-2, 46-30T

BB-Set
Shimano BB-RS500-PB

Řetěz
Shimano CN-M6100

Kazeta
Shimano CS-HG710-12, 11-36

Brzdy
Shimano BR-RX410 Hyd. Disc

Brzdový kotouč vpředu
Shimano RT-CL700, 160mm

Brzdový kotouč vzadu
Shimano RT-CL700, 160mm

Gripy
Syncros RC Bartape

Řidítka
Syncros Creston 2.0 X, Alloy 31.8mm

Představec
Syncros RR2.5, 1 1/4", four Bolt 31.8mm

Sedlovka
Syncros RR2.5 27.2/350mm

Sedlovka
Syncros Tofino R 2.5

Hlavové složení
Acros AIF-1113

Přední náboj
Formula Team II CL Disc 28 H

Zadní náboj
Formula Team II CL Disc 28 H

Výplet
Black 2mm

Ráfky vpředu
Syncros Race X25 Disc 28H

Ráfky vzadu
Syncros Race X25 Disc 28H

Přední plášť
Schwalbe G-One RX, 700x45C

Zadní plášť
Schwalbe G-One RX, 700x45C

Hmotnost v kg (cca)
10.5

Hmotnost v lb (cca)
23.15

Max. systémová hmotnost
120kg Celková hmotnost zahrnuje kolo, jezdce, vybavení\ a případné další zavazadlo

Klíčové vlastnosti

- Speedster Gravel alloy frame

- Addict HMF carbon fork incl. rivet nuts

- Shimano GRX 2x12 speed drivetrain

- Shimano GRX hyd. disc brakes

- Alexrims race X25 rims

- Schwalbe G-One RX Performance, 700x45C tires

- Syncros alloy components

Geometrie rámu

XXS/47

XS/49

S/52

M/54

L/56

XL/58

XXL/61

A
head tube angle / angle tube de direction

70.0 °

70.0 °

70.0 °

71.0 °

71.0 °

71.0 °

71.0 °

B
head tube length / hauteur tube de direction

98.0 mm
3.9 in
108.0 mm
4.3 in
128.0 mm
5.0 in
148.0 mm
5.8 in
168.0 mm
6.6 in
188.0 mm
7.4 in
208.0 mm
8.2 in

C
top tube horizontal / longueur horizontale tube supérieur

512.6 mm
20.2 in
524.1 mm
20.6 in
538.6 mm
21.2 in
561.1 mm
22.1 in
577.6 mm
22.7 in
587.5 mm
23.1 in
600.4 mm
23.6 in

D
standover height / hauteur entre-jambes

747.0 mm
29.4 in
762.0 mm
30.0 in
786.0 mm
30.9 in
806.0 mm
31.7 in
825.0 mm
32.5 in
844.0 mm
33.2 in
869.0 mm
34.2 in

E
BB offset / exccentrage axe de pédalier

-71.0 mm
-2.8 in
-71.0 mm
-2.8 in
-71.0 mm
-2.8 in
-71.0 mm
-2.8 in
-71.0 mm
-2.8 in
-71.0 mm
-2.8 in
-71.0 mm
-2.8 in

F
BB height / hauteur axe de pédalier

283.0 mm
11.1 in
283.0 mm
11.1 in
283.0 mm
11.1 in
283.0 mm
11.1 in
283.0 mm
11.1 in
283.0 mm
11.1 in
283.0 mm
11.1 in

G
wheel base / entraxe roues

1,019.5 mm
40.1 in
1,026.9 mm
40.4 in
1,037.7 mm
40.9 in
1,044.9 mm
41.1 in
1,056.4 mm
41.6 in
1,067.0 mm
42.0 in
1,071.3 mm
42.2 in

H
BB center to toptube center / dist. boitier - milieu tube supérieur

430.0 mm
16.9 in
450.0 mm
17.7 in
480.0 mm
18.9 in
500.0 mm
19.7 in
520.0 mm
20.5 in
540.0 mm
21.3 in
570.0 mm
22.4 in

I
BB center to top of seattube / dist. boitier - sommet tube de selle

470.0 mm
18.5 in
490.0 mm
19.3 in
520.0 mm
20.5 in
540.0 mm
21.3 in
560.0 mm
22.0 in
580.0 mm
22.8 in
610.0 mm
24.0 in

J
seat angle / angle tube de selle

75.0 °

74.5 °

74.0 °

73.0 °

72.5 °

72.5 °

72.5 °

K
chainstay / longueur bases

435.0 mm
17.1 in
435.0 mm
17.1 in
435.0 mm
17.1 in
439.0 mm
17.3 in
439.0 mm
17.3 in
439.0 mm
17.3 in
439.0 mm
17.3 in

L
reach / reach

372.3 mm
14.7 in
376.3 mm
14.8 in
380.3 mm
15.0 in
385.4 mm
15.2 in
390.4 mm
15.4 in
394.4 mm
15.5 in
401.4 mm
15.8 in

M
stack / stack

523.7 mm
20.6 in
533.1 mm
21.0 in
551.9 mm
21.7 in
574.8 mm
22.6 in
593.7 mm
23.4 in
612.6 mm
24.1 in
631.5 mm
24.9 in

N
stem length / longueur potence

73.0 mm
2.9 in
83.0 mm
3.3 in
93.0 mm
3.7 in
103.0 mm
4.1 in
103.0 mm
4.1 in
113.0 mm
4.4 in
113.0 mm
4.4 in
