Description 802.11ax (WiFi 6) Dual-Radio PoE Access Point Wireless Standard IEEE 802.11 ax/ac/n/g/b/a MIMO MU-MIMO Wireless speed 2.4GHz: 575 Mbps 5GHz: 1200 Mbps Frequency band 2.4 GHz • USA (FCC): 2.412 to 2.462 GHz • Europe (ETSI): 2.412 to 2.472 GHz 5 GHz • USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz Bandwidth 20-, 40-, 80-MHz Conducted typical transmit output power US (2.4GHz/5GHz): 23/26 dBm EU (2.4GHz/5GHz): 20/25 dBm RF Design Antenna... Celý popis
Koupit za 2 568 Kč- Od nejoblíbenějších
- Od nejlevnějších
- Od nejdražších
100 %

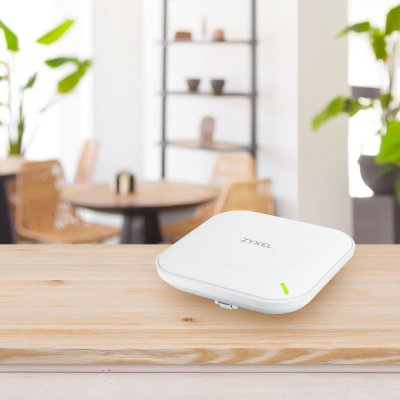

ZyXEL Zyxel NWA50AX 1775 Mbit/s Bílá Podpora napájení po Ethernetu (PoE) (NWA50AX-EU0102F)
Doprava:
zdarma
2 568 Kč
Koupit za 2 568 Kč
94 %
WiFi Access Point Zyxel NWA50AX Standalone / NebulaFlex ,EU AND UK, SINGLE PACK INCLUDE POWER ADAPTOR,ROHS (NWA50AX-EU0102F)
Doprava:
69 Kč
Skladem
2 227 Kč
Koupit za 2 227 Kč
95 %
Zyxel NWA50AX, Standalone / NebulaFlex Wireless Access Point, Single Pack include Power Adaptor, EU and UK, ROHS - Zyxel NWA50AX
Doprava:
47 Kč
2 157 Kč
Koupit za 2 157 Kč
92 %
ZYXEL NWA50AX,Standalone/NebulaFlex WIFI AP, singl pack NWA50AX-EU0102F
Doprava:
zdarma
2 054 Kč
Koupit za 2 054 Kč
0 %
ZyXEL NWA50AX WiFi 6 802.11ax bezdrátový přístupový bod s dvěma rádiovými moduly NWA50AX-EU0102F
Doprava:
zdarma
1 990 Kč
Koupit za 1 990 Kč
Popis
Description 802.11ax (WiFi 6) Dual-Radio PoE Access Point
Wireless
Standard IEEE 802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4GHz: 575 Mbps
5GHz: 1200 Mbps
Frequency band 2.4 GHz
• USA (FCC): 2.412 to 2.462 GHz
• Europe (ETSI): 2.412 to 2.472 GHz
5 GHz
• USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
• European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40-, 80-MHz
Conducted typical transmit output power US (2.4GHz/5GHz): 23/26 dBm
EU (2.4GHz/5GHz): 20/25 dBm
RF Design
Antenna type 2x2 + 2x2 MIMO embedded antenna
Antenna gain 2.4GHz: 3 dBi
5GHz: 4 dBi
Minimum Receive sensitivity Min. Rx sensitivity up to -99 dBm
WLAN feature
Band Steering Yes
WDS/Mesh Yes
Fast roaming Yes
DCS Yes
Load balancing No
Security
Encryption • WPA Personal
• WPA2 Personal
• WPA3 Personal
Authentication No
Access management • MAC filtering
• Rogue AP detection
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
Management
Operating mode • Nebula Cloud managed
• Standalone
ZON Utility • Discovery of Zyxel switches, APs and gateways
• Centralized and batch configurations
o IP configuration
o IP renew
o Device factory reset
o Device reboot
o Device locating
o Web GUI access
o Firmware upgrade
o Password configuration
Zyxel Wireless Optimizer WiFi AP planning
Web UI/CLI Yes
SNMP NO
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
140 x 140 x 37.5/5.51 x 5.51 x 1.48
Weight (g/lb.)
290/0.64
Packing Dimensions (WxDxH)(mm/in.)
240 x 155 x 60/9.45 x 6.10 x 2.36
Weight (g/lb.)
600/1.32
Included accessories • Power adapter
• Mount plate
• Mounting screws
MTBF (hr) 1,010,980
Physical Interfaces
Ethernet port 1 x 10/100/1000M LAN
Power • Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A
• PoE (802.3at): power draw 16 W
Environmental Specifications
Operating Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 90% (non-condensing)
Storage Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio • FCC Part 15C
• FCC Part 15E
• ETSI EN 300 328
• EN 301 893; LP0002
• EN 60601-1-2
EMC • FCC Part 15B
• EN 301 489-1
• EN 301 489-17
• EN55022
• EN55024
• EN61000-3-2/-3
• BSMI CNS13438
Safety • EN 60950-1
• IEC 60950-1
• BSMI
• CNS14336-1
Wireless
Standard IEEE 802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4GHz: 575 Mbps
5GHz: 1200 Mbps
Frequency band 2.4 GHz
• USA (FCC): 2.412 to 2.462 GHz
• Europe (ETSI): 2.412 to 2.472 GHz
5 GHz
• USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
• European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40-, 80-MHz
Conducted typical transmit output power US (2.4GHz/5GHz): 23/26 dBm
EU (2.4GHz/5GHz): 20/25 dBm
RF Design
Antenna type 2x2 + 2x2 MIMO embedded antenna
Antenna gain 2.4GHz: 3 dBi
5GHz: 4 dBi
Minimum Receive sensitivity Min. Rx sensitivity up to -99 dBm
WLAN feature
Band Steering Yes
WDS/Mesh Yes
Fast roaming Yes
DCS Yes
Load balancing No
Security
Encryption • WPA Personal
• WPA2 Personal
• WPA3 Personal
Authentication No
Access management • MAC filtering
• Rogue AP detection
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
Management
Operating mode • Nebula Cloud managed
• Standalone
ZON Utility • Discovery of Zyxel switches, APs and gateways
• Centralized and batch configurations
o IP configuration
o IP renew
o Device factory reset
o Device reboot
o Device locating
o Web GUI access
o Firmware upgrade
o Password configuration
Zyxel Wireless Optimizer WiFi AP planning
Web UI/CLI Yes
SNMP NO
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
140 x 140 x 37.5/5.51 x 5.51 x 1.48
Weight (g/lb.)
290/0.64
Packing Dimensions (WxDxH)(mm/in.)
240 x 155 x 60/9.45 x 6.10 x 2.36
Weight (g/lb.)
600/1.32
Included accessories • Power adapter
• Mount plate
• Mounting screws
MTBF (hr) 1,010,980
Physical Interfaces
Ethernet port 1 x 10/100/1000M LAN
Power • Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A
• PoE (802.3at): power draw 16 W
Environmental Specifications
Operating Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 90% (non-condensing)
Storage Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio • FCC Part 15C
• FCC Part 15E
• ETSI EN 300 328
• EN 301 893; LP0002
• EN 60601-1-2
EMC • FCC Part 15B
• EN 301 489-1
• EN 301 489-17
• EN55022
• EN55024
• EN61000-3-2/-3
• BSMI CNS13438
Safety • EN 60950-1
• IEC 60950-1
• BSMI
• CNS14336-1
Parametry
| Výrobce | ZyXEL |
| Typ zařízení | access pointy |
| Počet LAN portů | 1 |
| WiFi třídy | 802.11 a/b/g/n/ac/ax |
| Frekvenční pásmo | 5 GHz |
| Šifrování | WPA, WPA2, WPA3 |
| PoE | ano |
| MU-MIMO | ano |
| IPv6 | ano |
| Rychlost na 2,4 GHz | 1200 Mb/s |
| Rychlost na 5 GHz | 1200 Mb/s |
